Narrow V-belts

Home || V-belts || Narrow V-belts

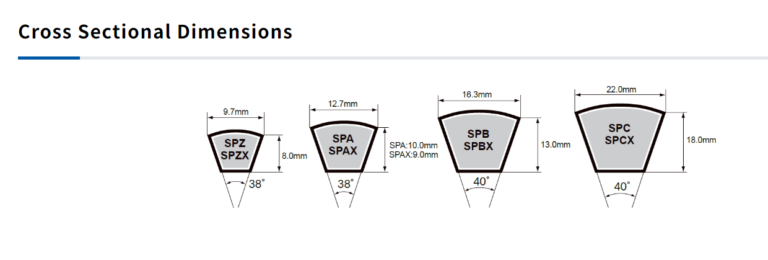

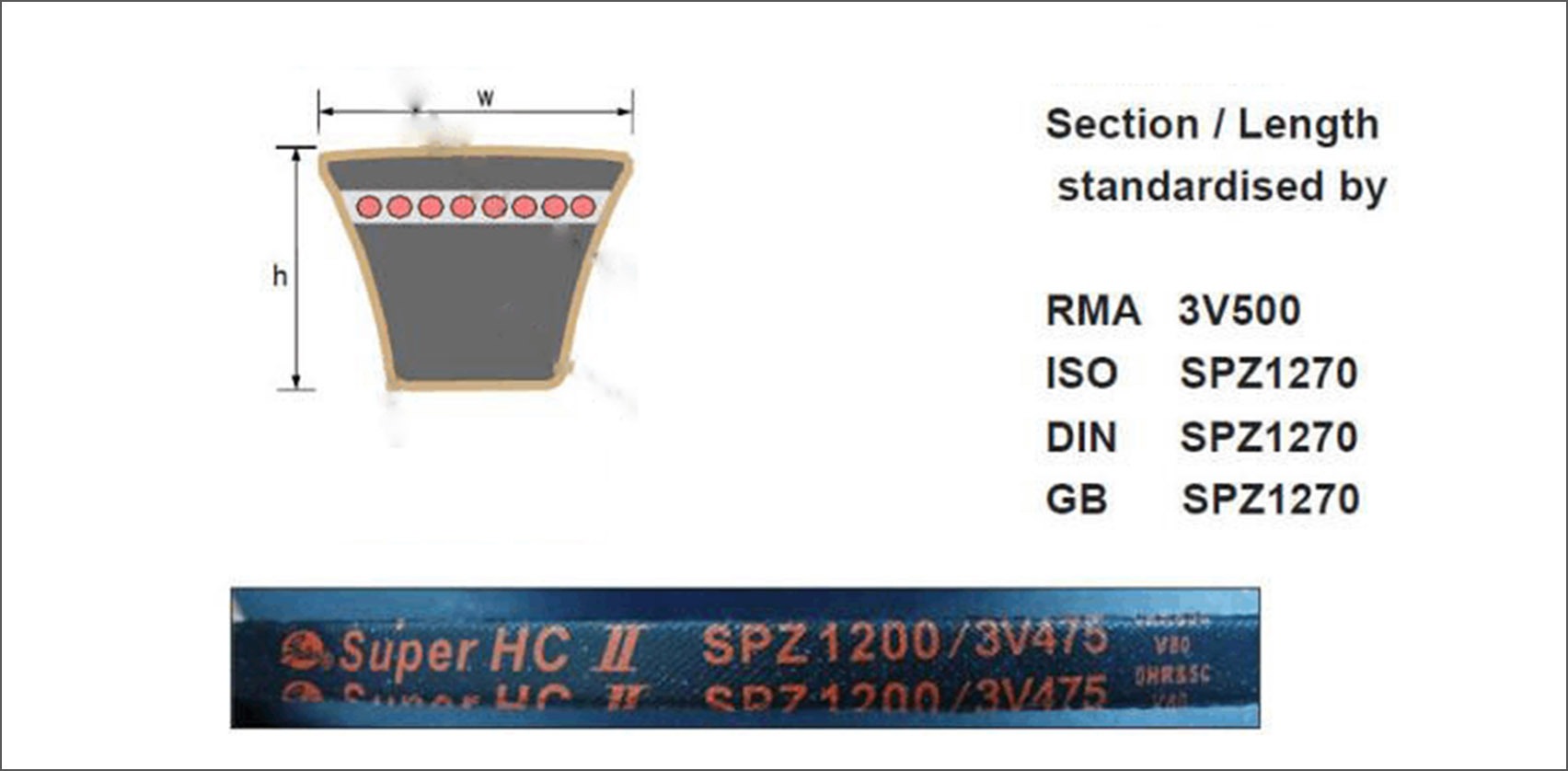

Narrow V Belt internal construction and dimension diagram

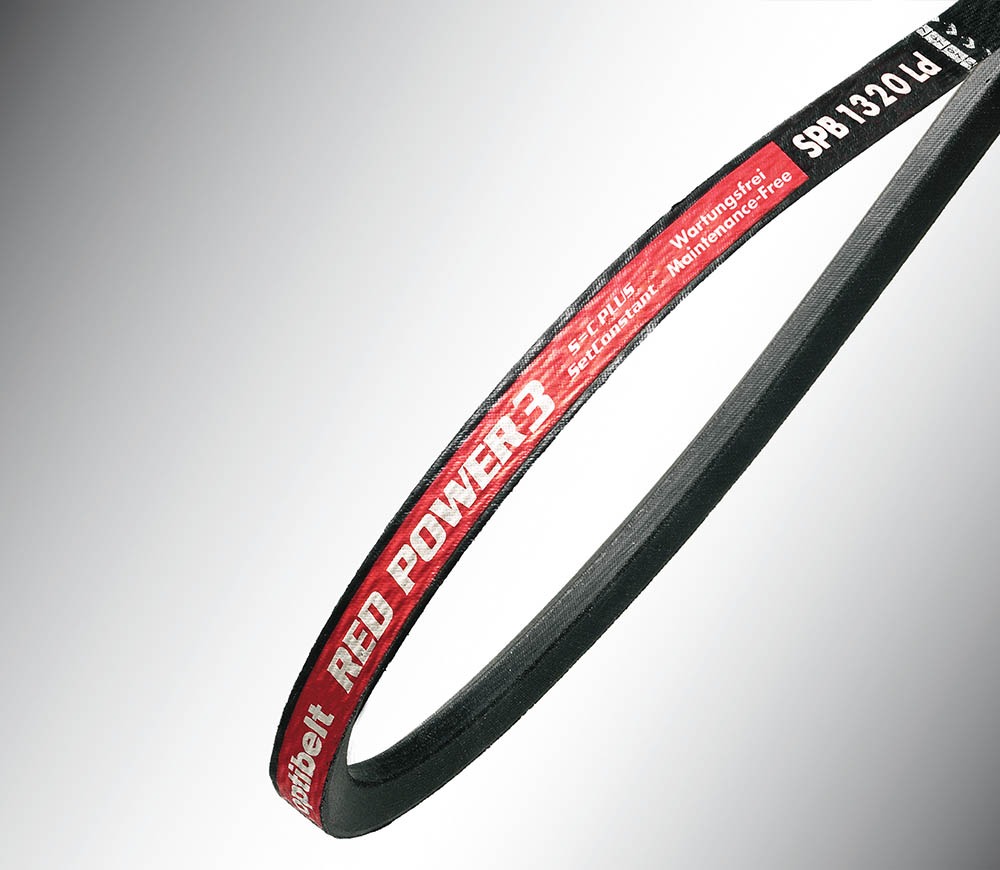

RED POWER V Belts Product Image, Heavy Duty Industrial V Belts Supply in Australia

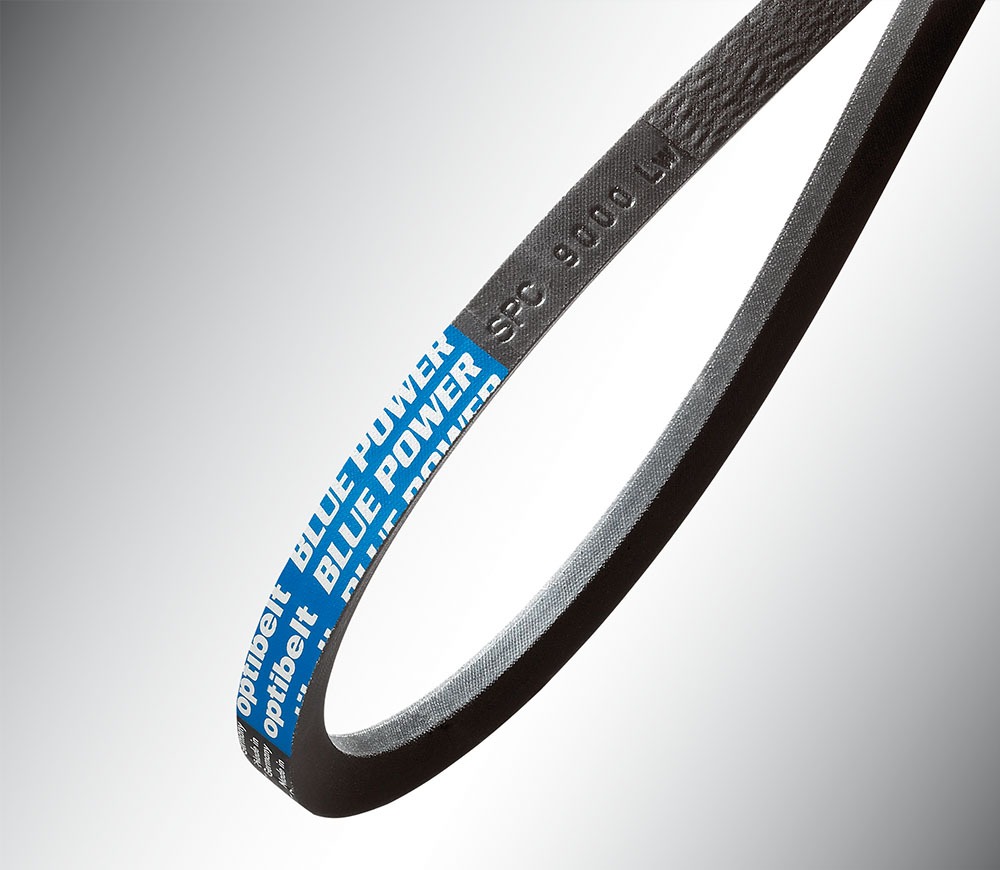

BLUE POWER V Belts Product Image, Heavy Duty Industrial V Belts Supply in Australia

Narrow V-belts

Simple structure, easy manufacturing and installation, low cost
Smooth transmission, low noise, suitable for quiet environments
Excellent shock absorption, reducing vibration and impact during transmission
Slips on pulleys under overload, providing overload protection
Twistable transmission for special applications
Maximum linear speed: narrow V-belts up to 50 m/s, standard V-belts up to 30 m/s

Narrow V-belts was developed to transmit higher torques in small assembly areas and enable a space-saving layout, high-speed drive and reduce operating and maintenance costs compared to classical V-belts. Features oil/heat resistance and electrical conductivity.

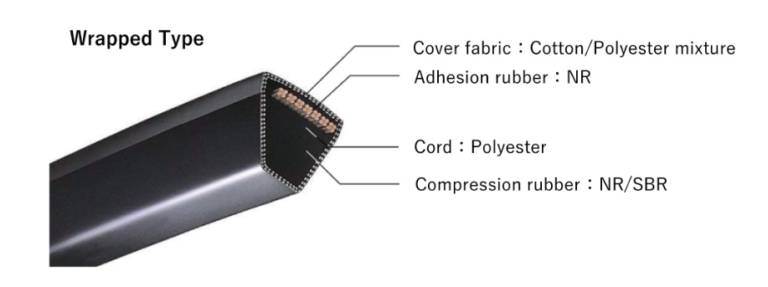

Characteristics and Construction Materials

Heat resistance temperature (℃/℉#8457;)：+90/+194
1) Cold resistance temperature (℃/℉#8457;)：-30/-22
2) Max. belt speed(m/s)：40
3) Wear resistance：Normal
4) Electric conductivity：Yes
