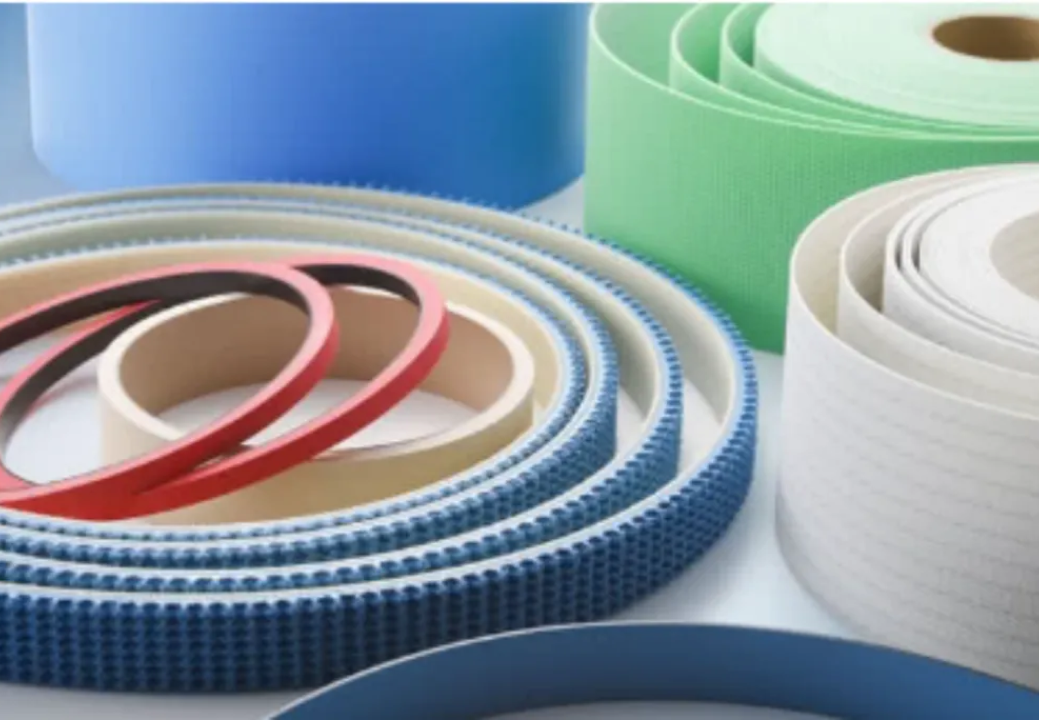

Flat Belts
Flat Belts
· Low Noise
· High Safety Performance
· Overload Protection
· Easy Design & Installation
· Supply NITTA, HABASIT, SIEGLING original flat belts

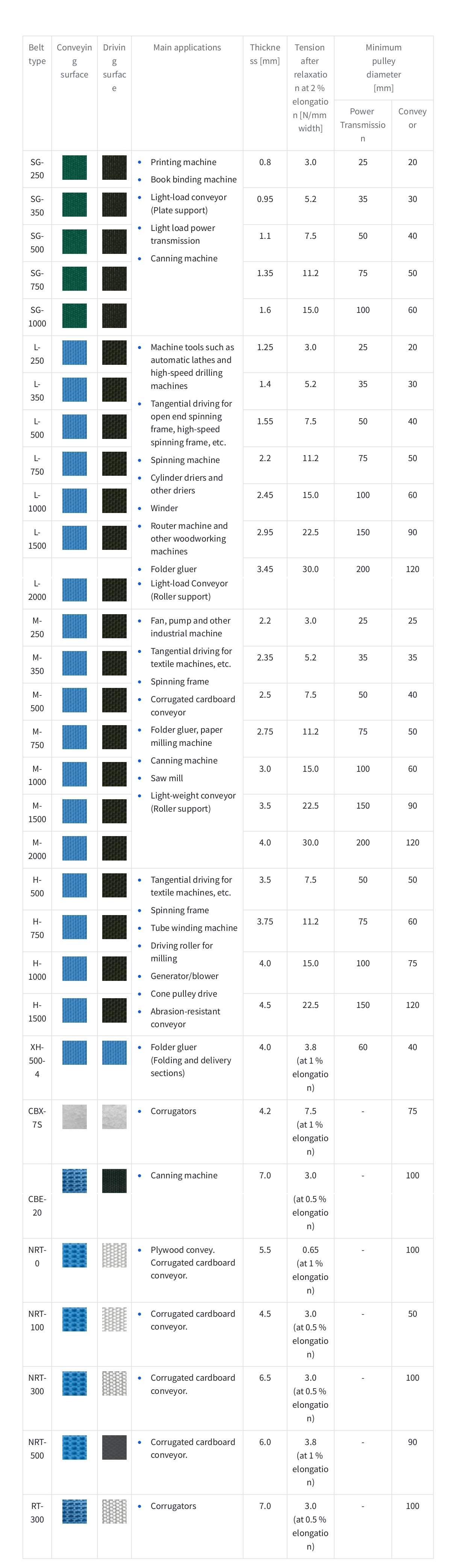

Regular Flat Belts Model
| Type | Model | Thickness | Min Pulley Dia (mm) | Effective Pull At 1% Elongation | Tension Rating (kg/m²) |
|---|---|---|---|---|---|

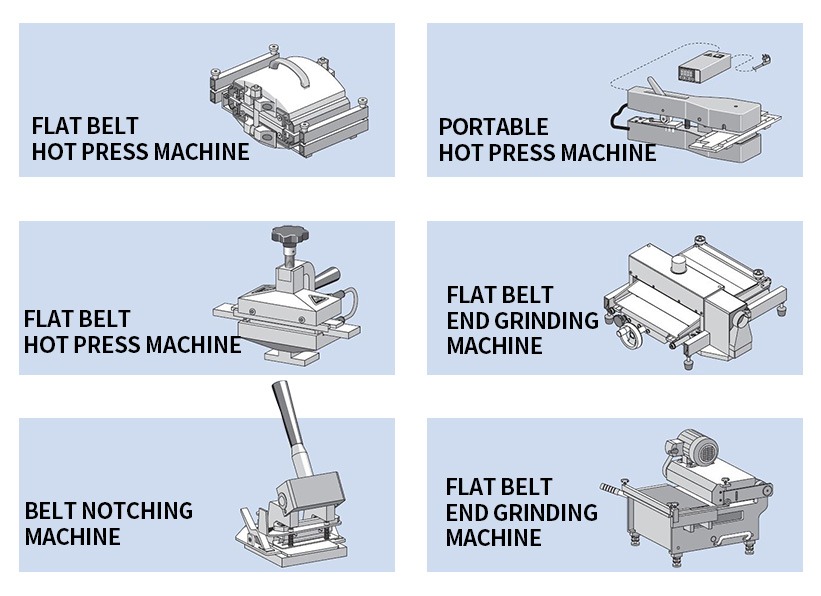

Flat Belt Splicing Equipment
Features
- Special abrasion-resistant synthetic rubber (NBR) is used for the belt surface offering stable coefficient of friction and high abrasion resistance.
- High-quality oriented polyamide film is used for the tension member to offer high tensile strength.
- Excellent durability and high-speed driving by the thin and strong tension member.
- Highly reliable joints completed with specialized tools and glue.
Applications
- Printing / paper converting
– Folder gluer / tube winder / paper converting machine / corrugated cardboard conveyor / Folding Machine - Woodworking
– Rotor Spinning / Ring Spinning / Twisting Machine / Drawing Frame / Woodworking Drilling Machine / Woodworking Four-Side Planer / Woodworking Grooving Machine / Woodworking Panel Saw / Woodworking Circular Cutting Machine / Paper Making Machinery / Medium-Duty Transmission & Conveying - Others
–Machine tool / ball circulation conveyor for amusement machine / Light-Duty Transmission & Conveying

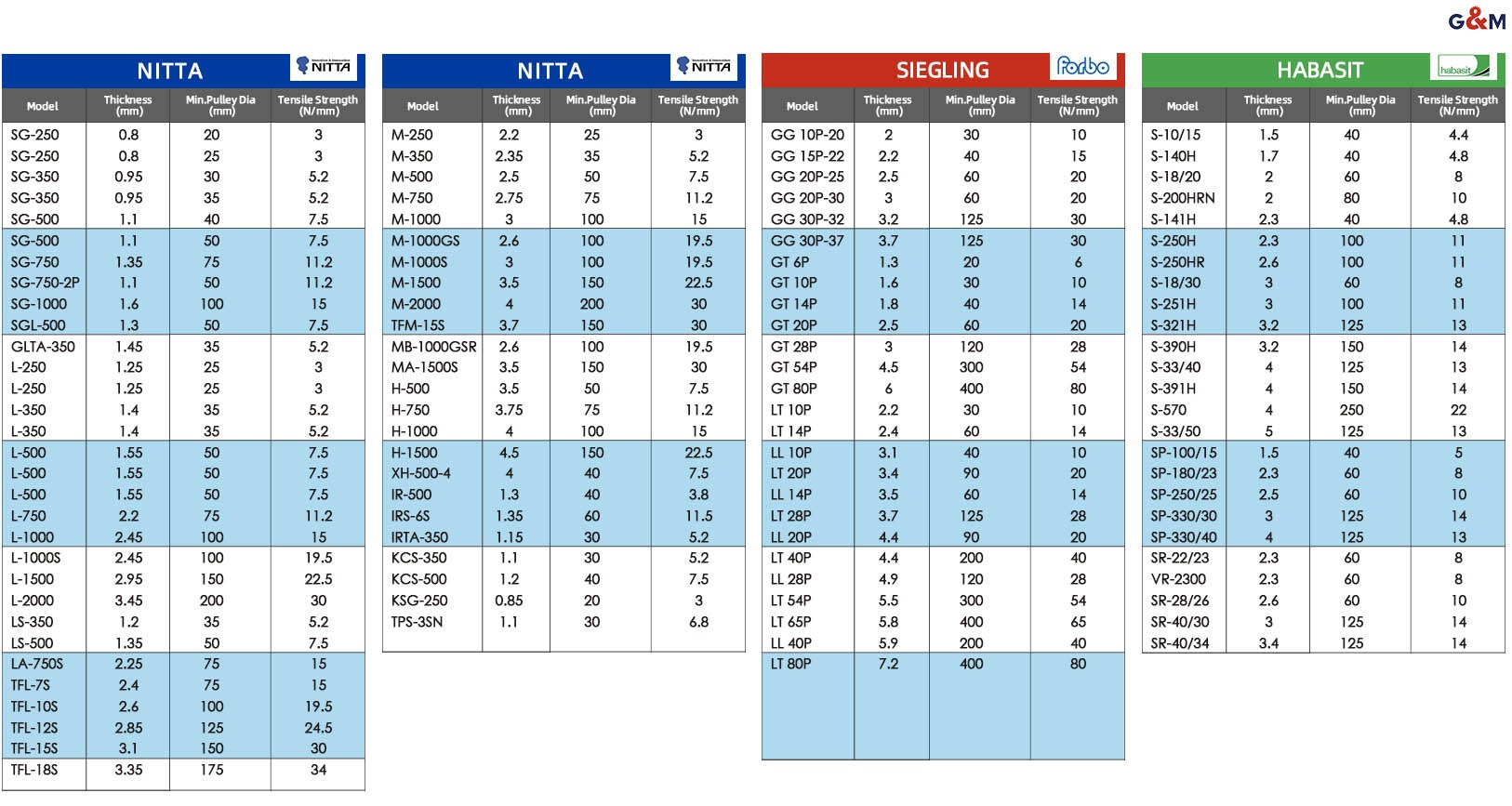

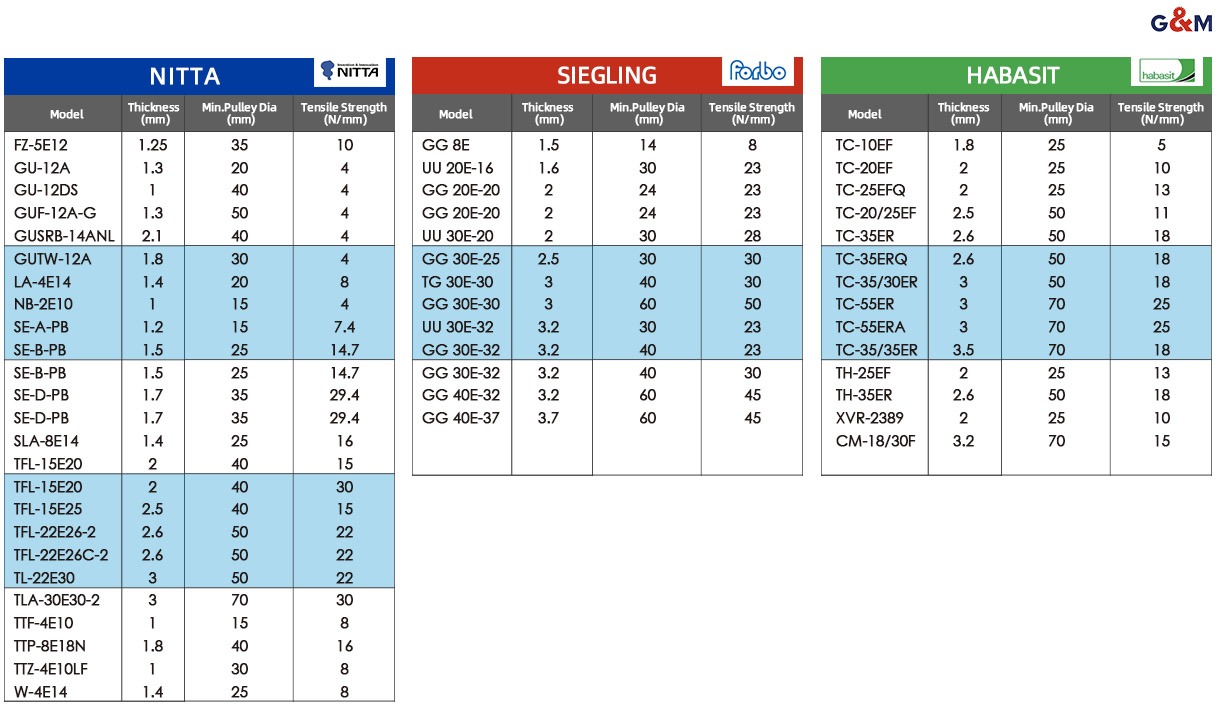

Global Flat Belt Makers – Model & Specification List
Request more information.
