HTD Timing Belts

Home || Timing Belts || HTD Timing Belts

圆弧齿同步带-网页版

Arc Tooth Timing Belts

HTD Timing Belts

Precise power transmission & high efficiency (up to 98%+)
Compact structure, lightweight design
Lower bearing load (20–25% reduction compared to conventional V-belts with same pulley diameter)
Wide power coverage
Maximum linear speed up to 33 m/s
Lubrication-free, maintenance-free, low noise operation and excellent cost-effectiveness

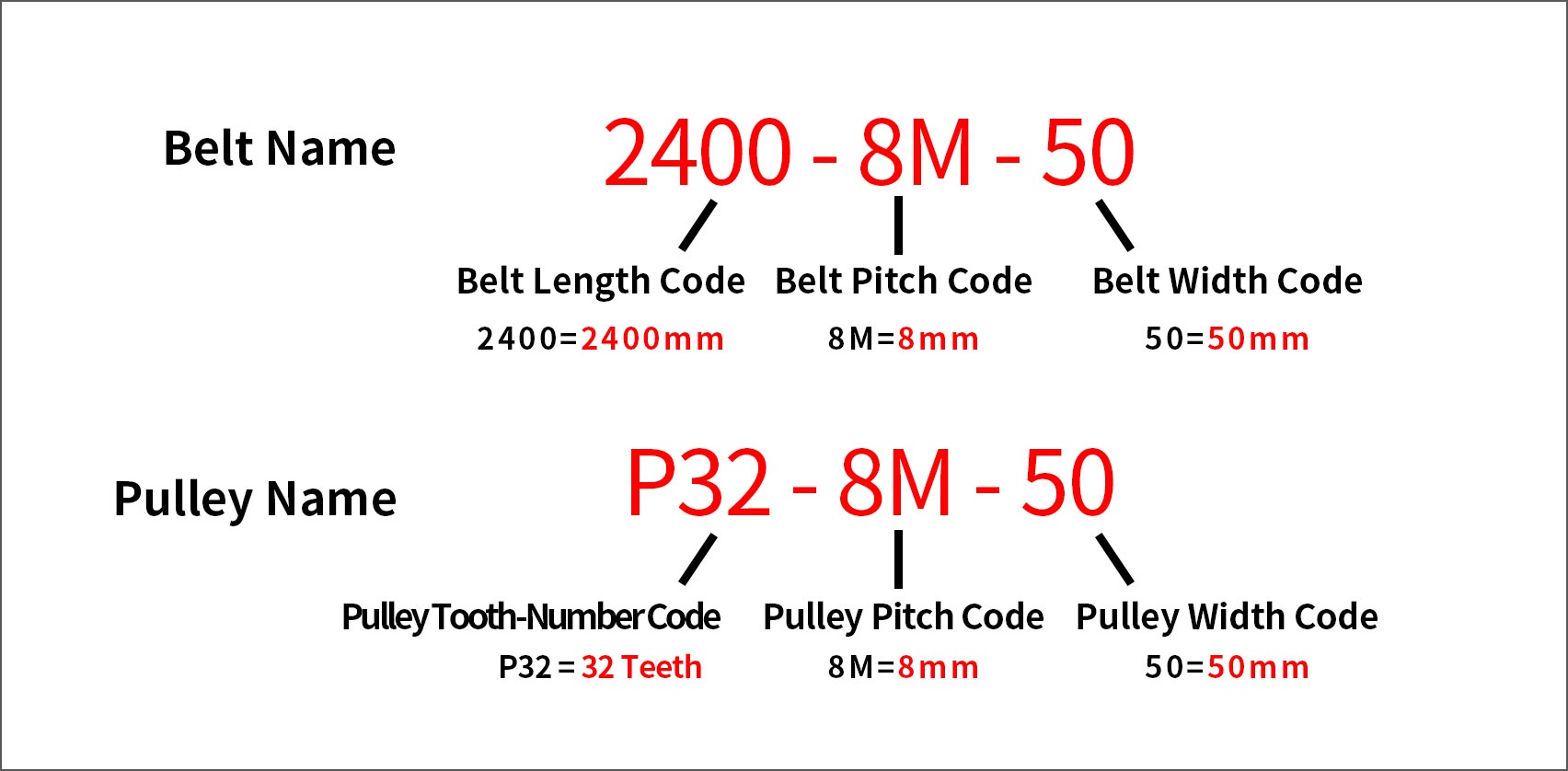

Naming Rules

HTD Timing Belt naming rule and model identification guide

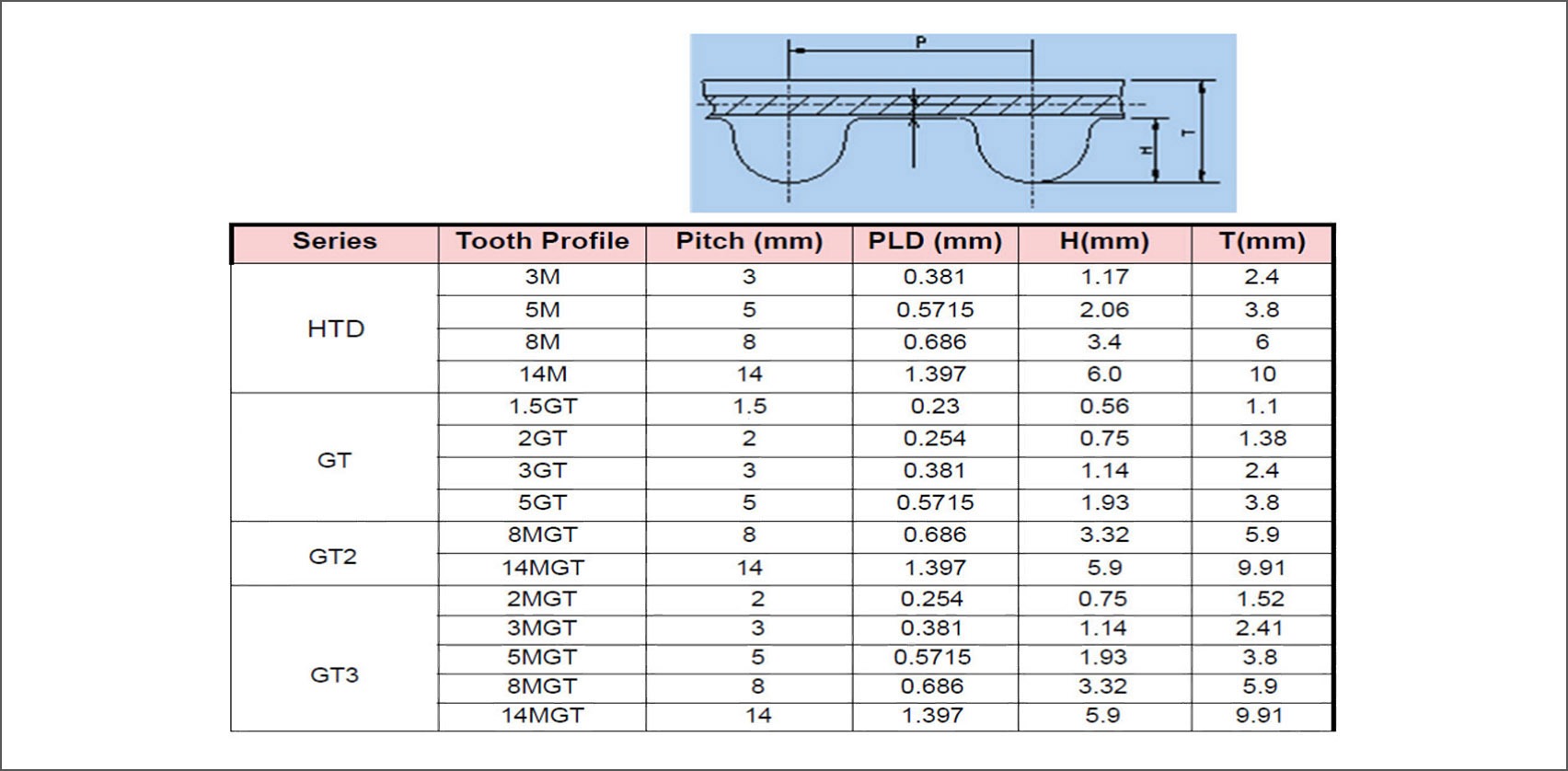

origin(1)

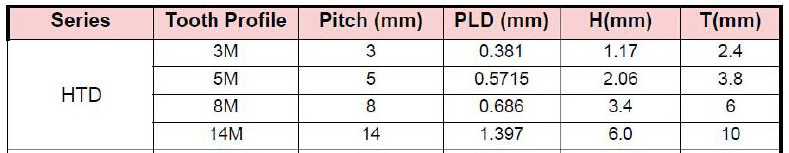

HTD Timing Belts Tooth Profile

HTD Timing Belts Tooth Profile: H3M, H5M, H8M, H14M, 20M, TP3M, TP5M, TP8M, TP14M

H3M

Model specifications

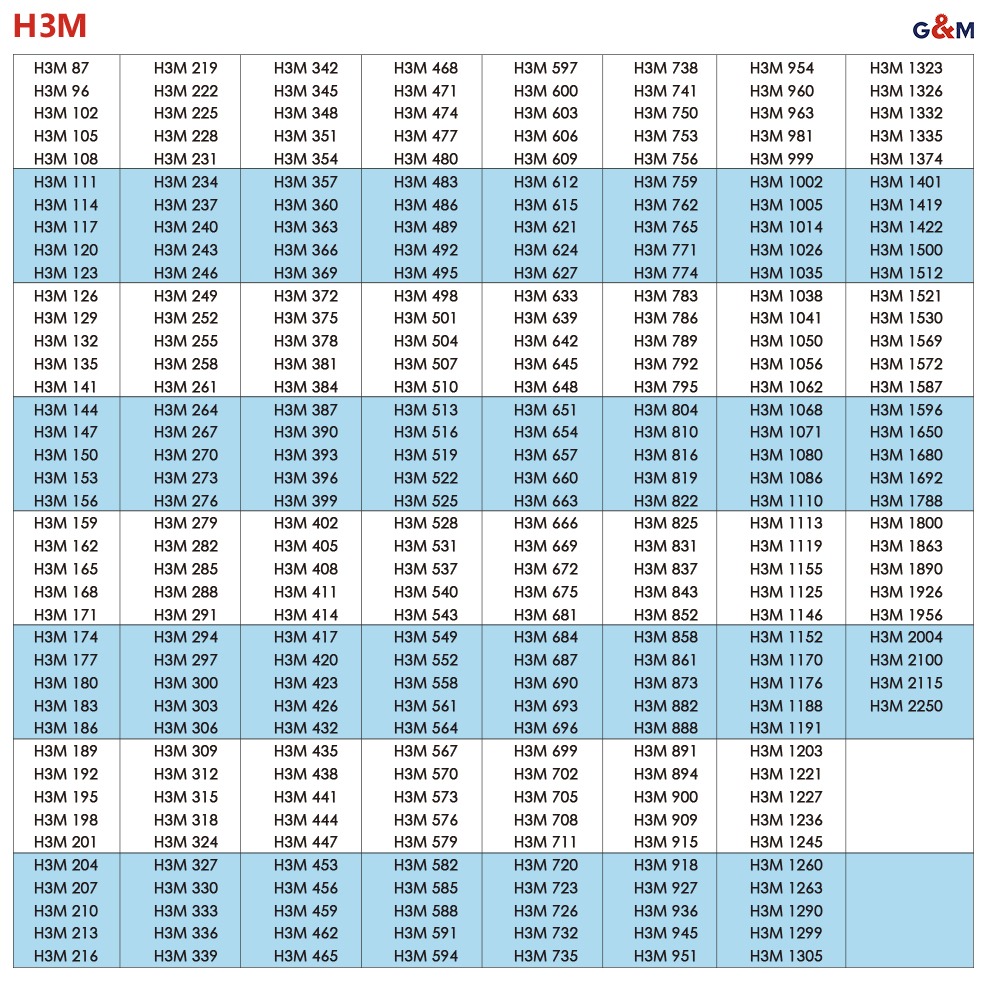

HTD timing belt H3M 3mm pitch synchronous belt for precision drives in Australia

H5M

Model specifications

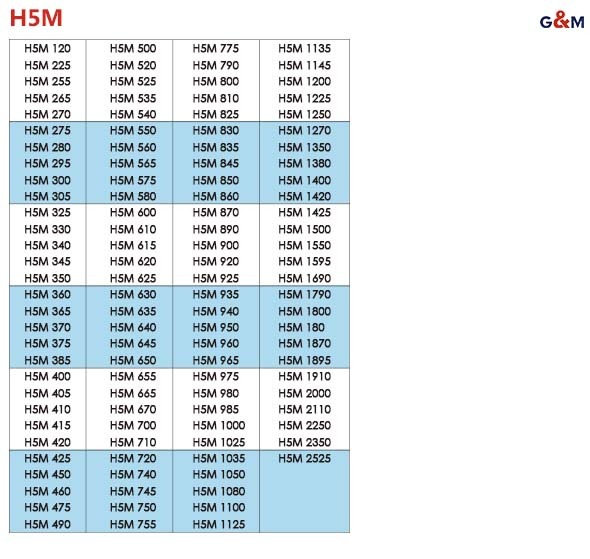

HTD timing belt H5M 5mm pitch industrial synchronous belt

H8M

Model specifications

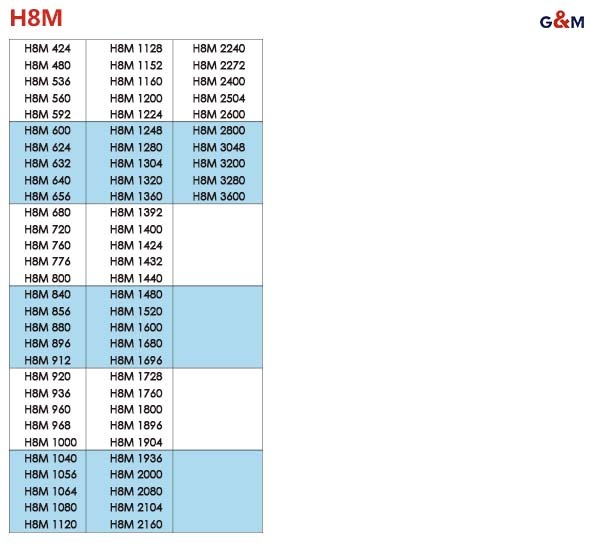

HTD timing belt H8M 8mm pitch heavy-duty synchronous belt

H14M

Model specifications

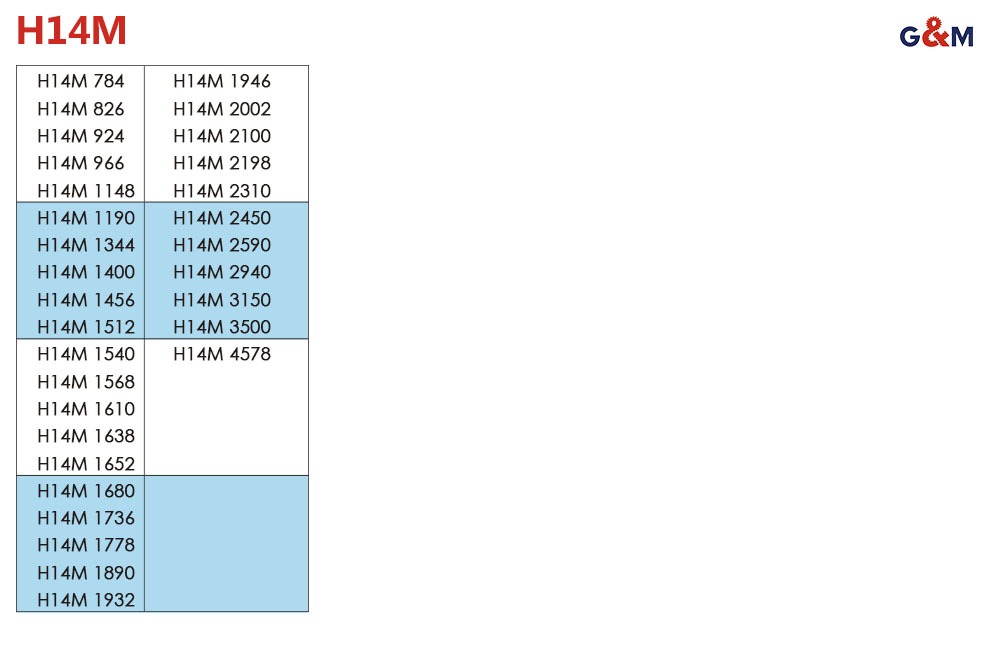

HTD timing belt H14M 14mm pitch extra heavy-duty synchronous bel

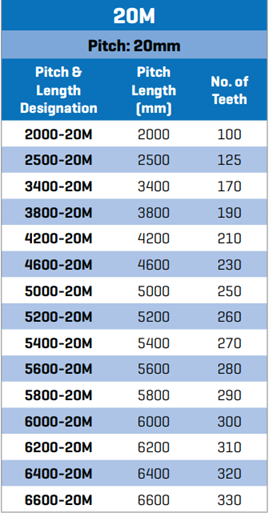

20M

Model specifications

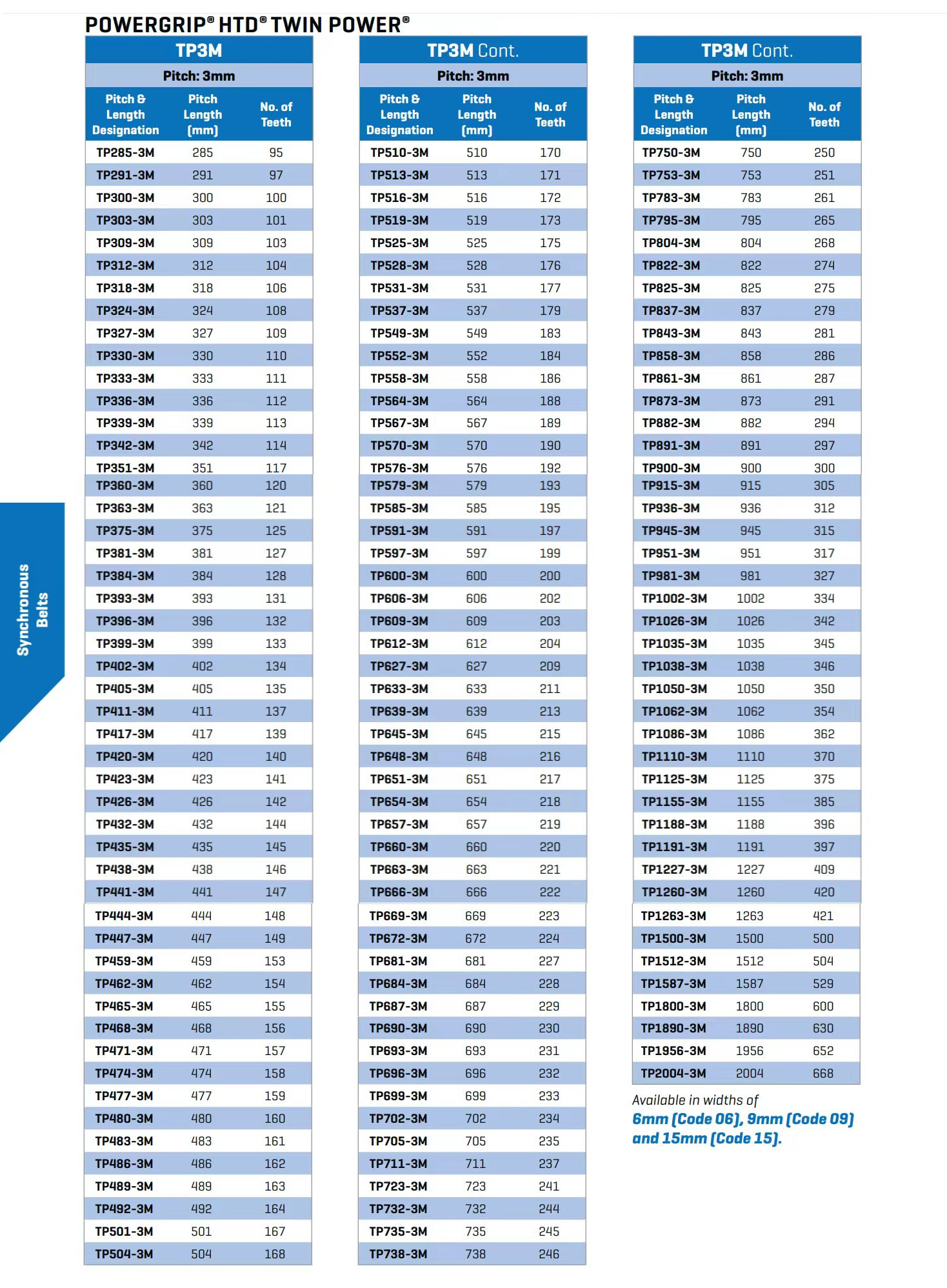

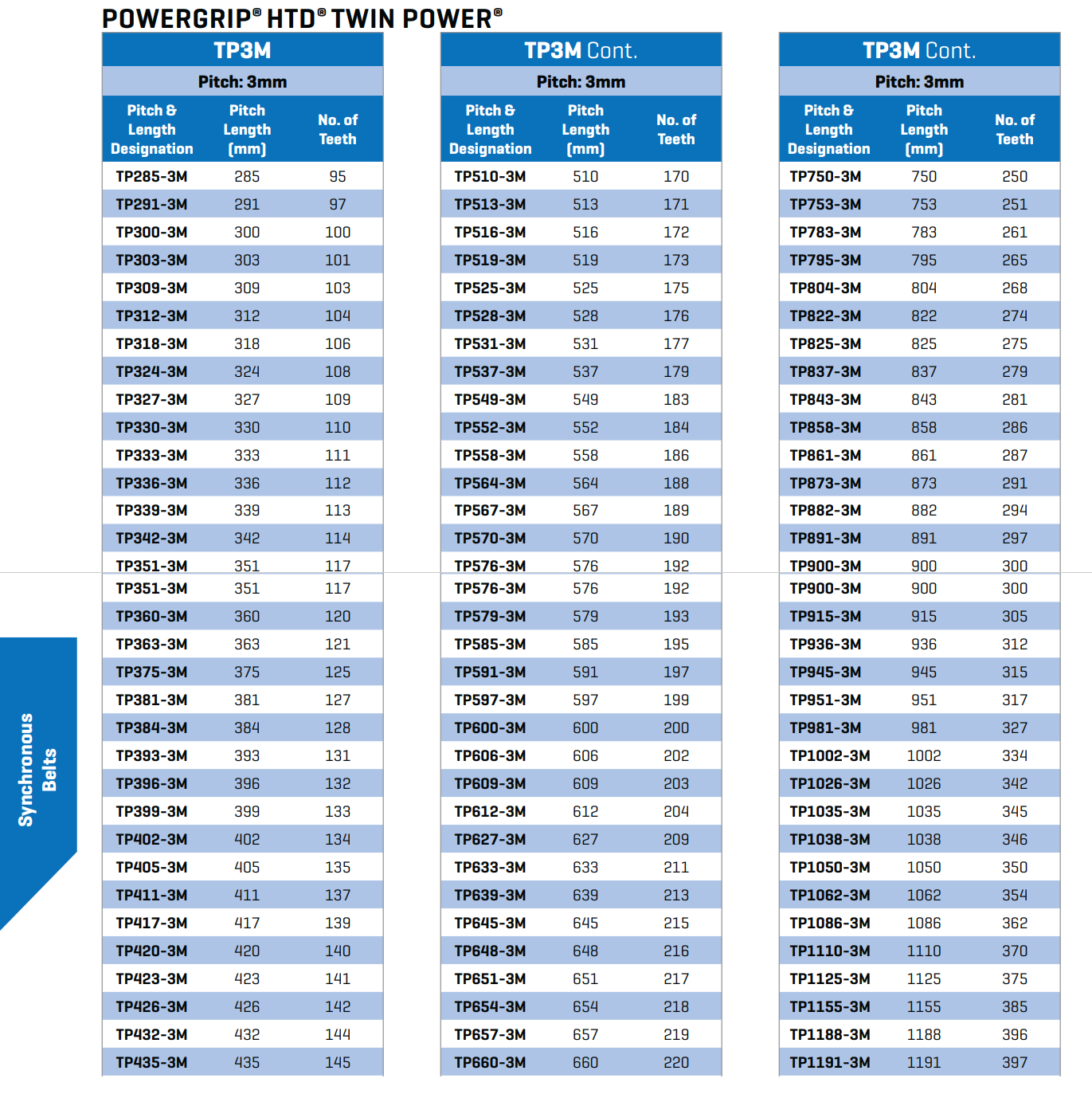

TP3M

Model specifications

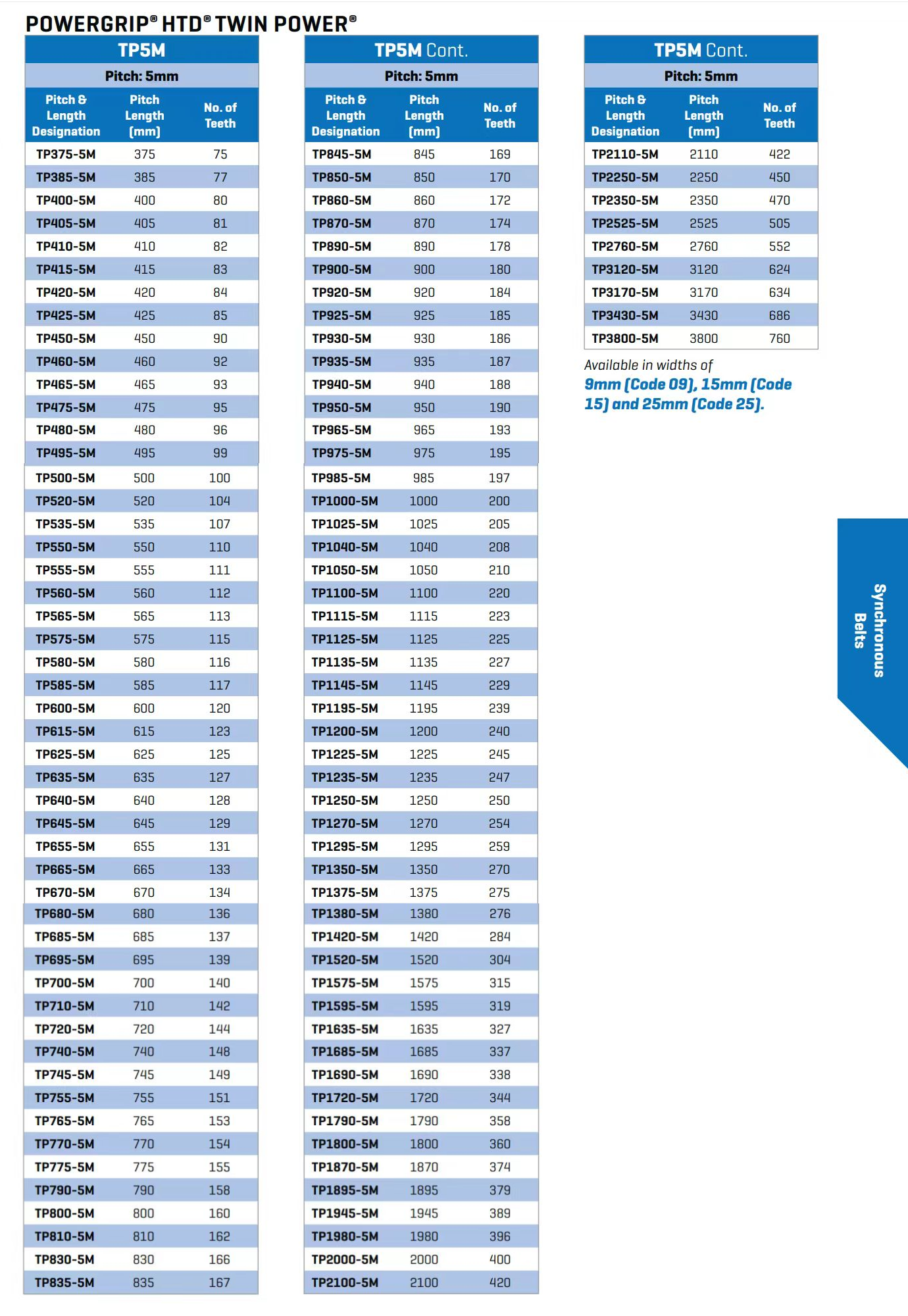

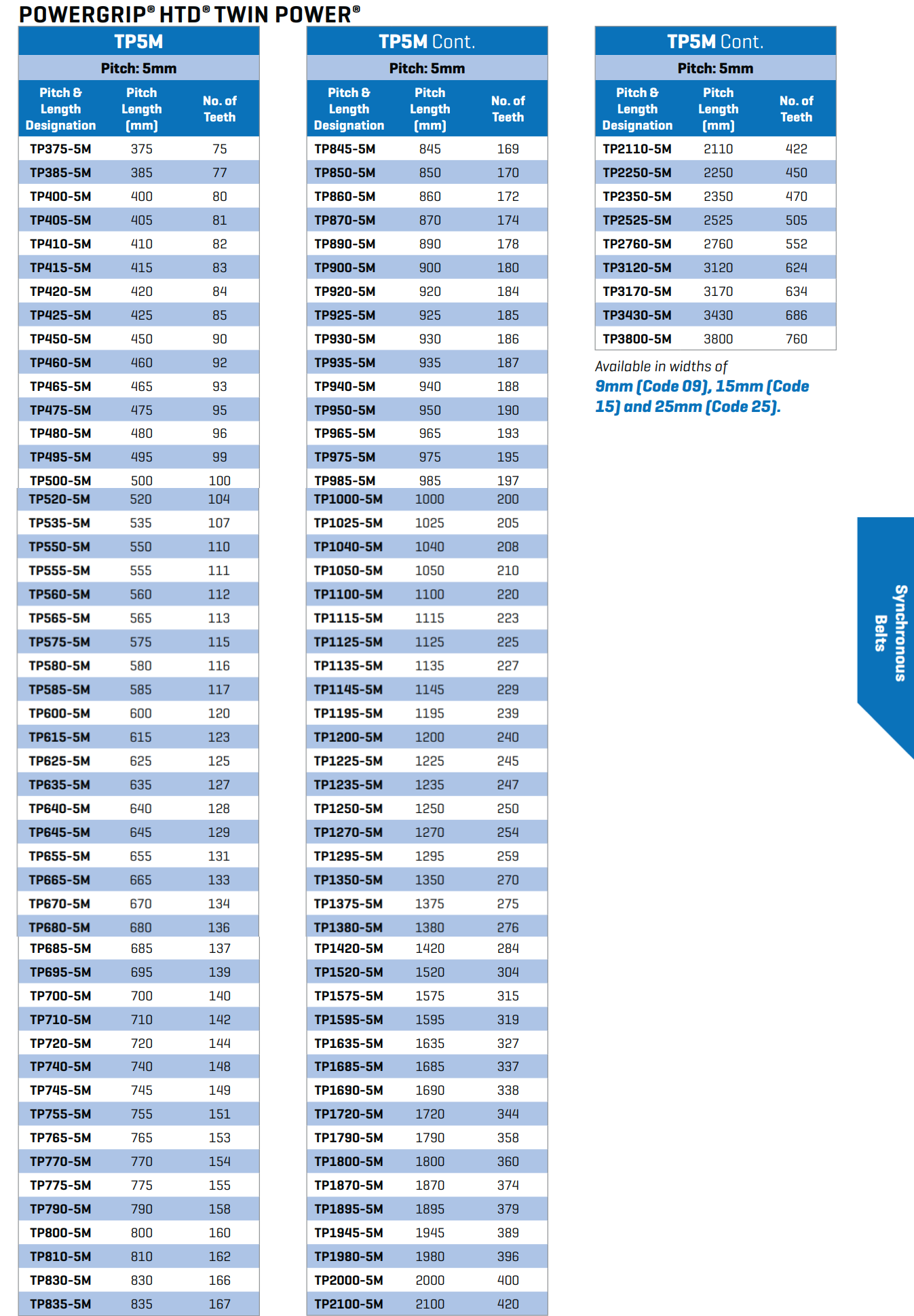

TP5M

Model specifications

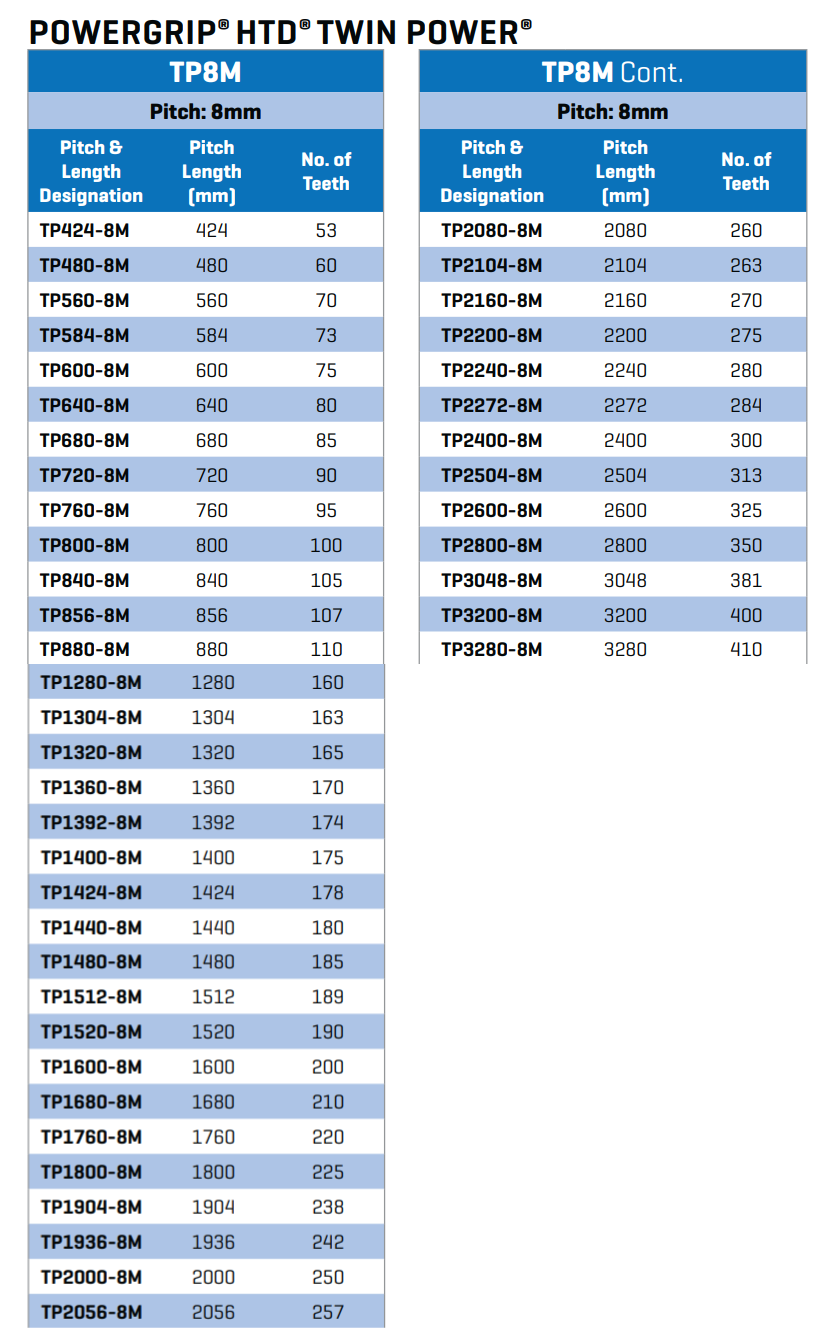

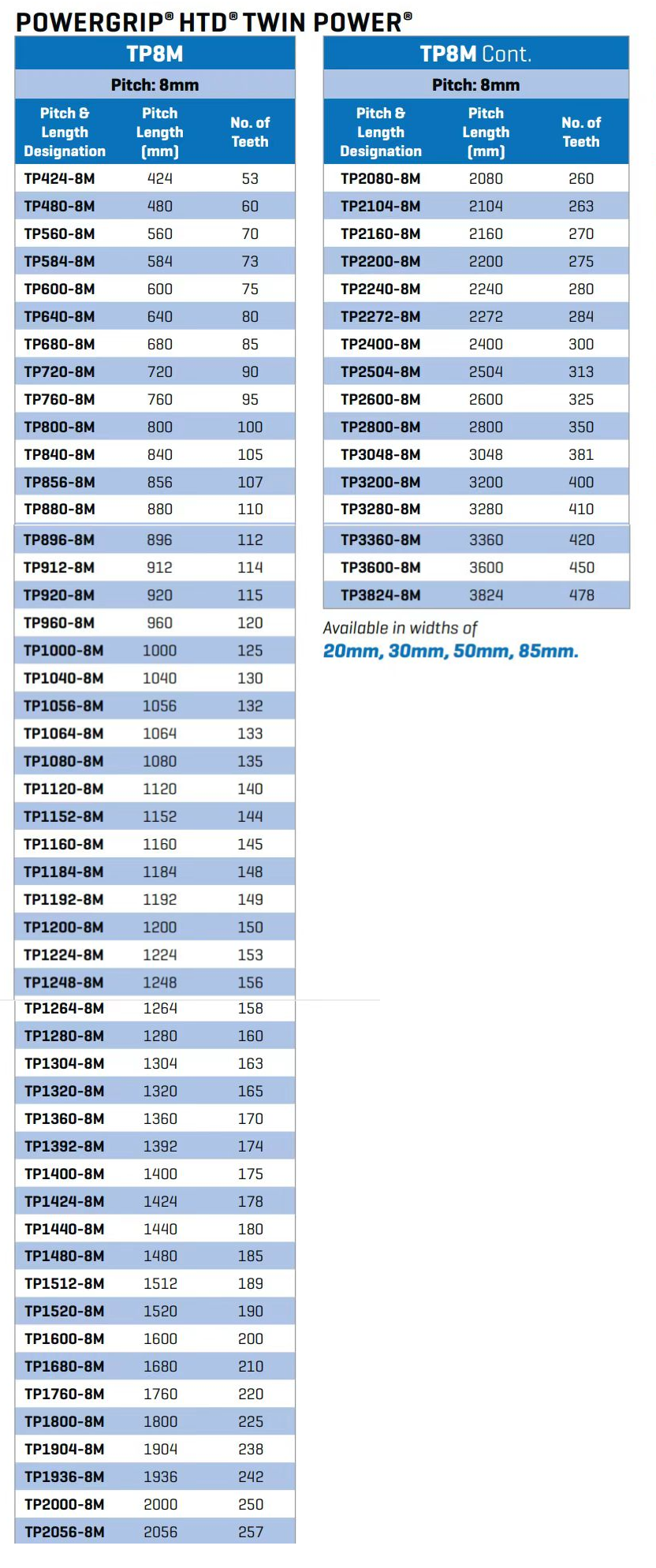

TP8M

Model specifications

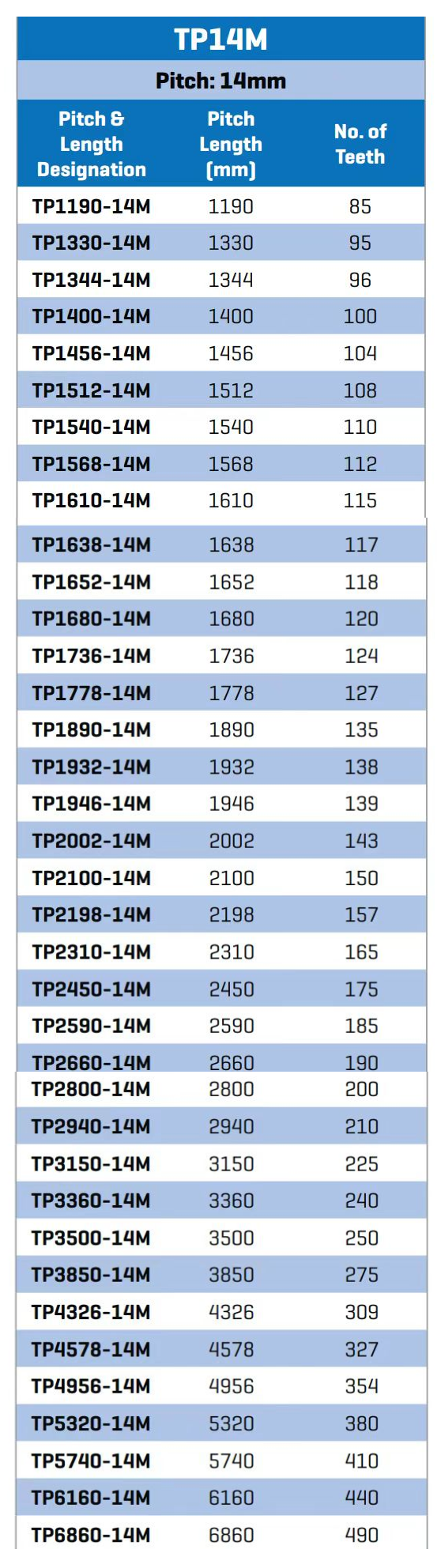

TP14M

Model specifications
