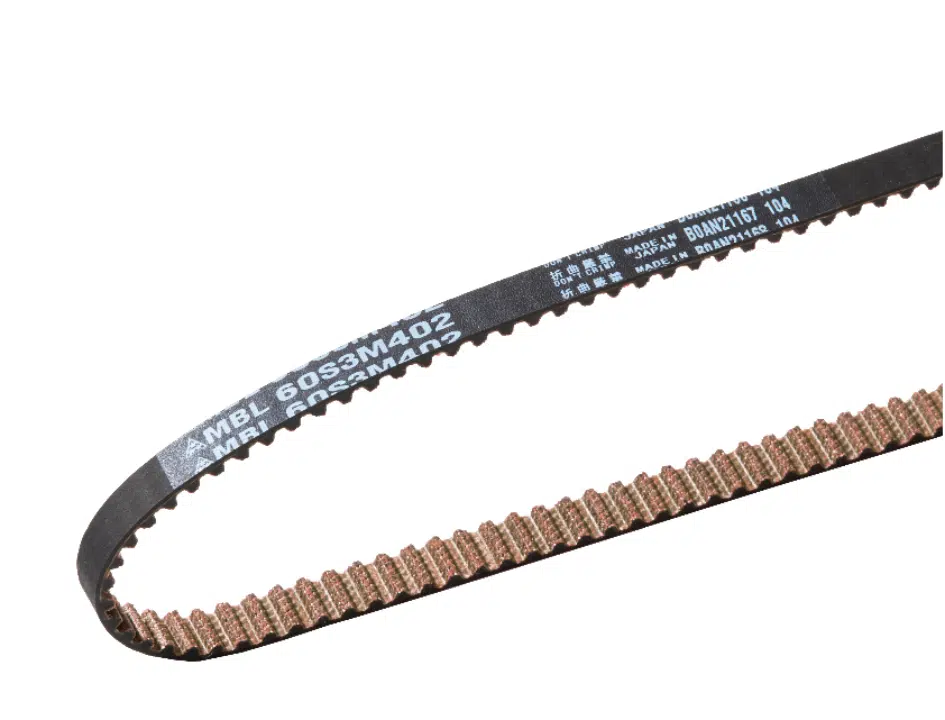

STD Timing Belts
STD Timing Belts
- Precise power transmission & high efficiency (up to 98%+)
- Compact structure, lightweight design
- Lower bearing load (20–25% reduction compared to conventional V-belts with same pulley diameter)
- Wide power coverage
- Maximum linear speed up to 33 m/s
- Lubrication-free, maintenance-free, low noise operation and excellent cost-effectiveness

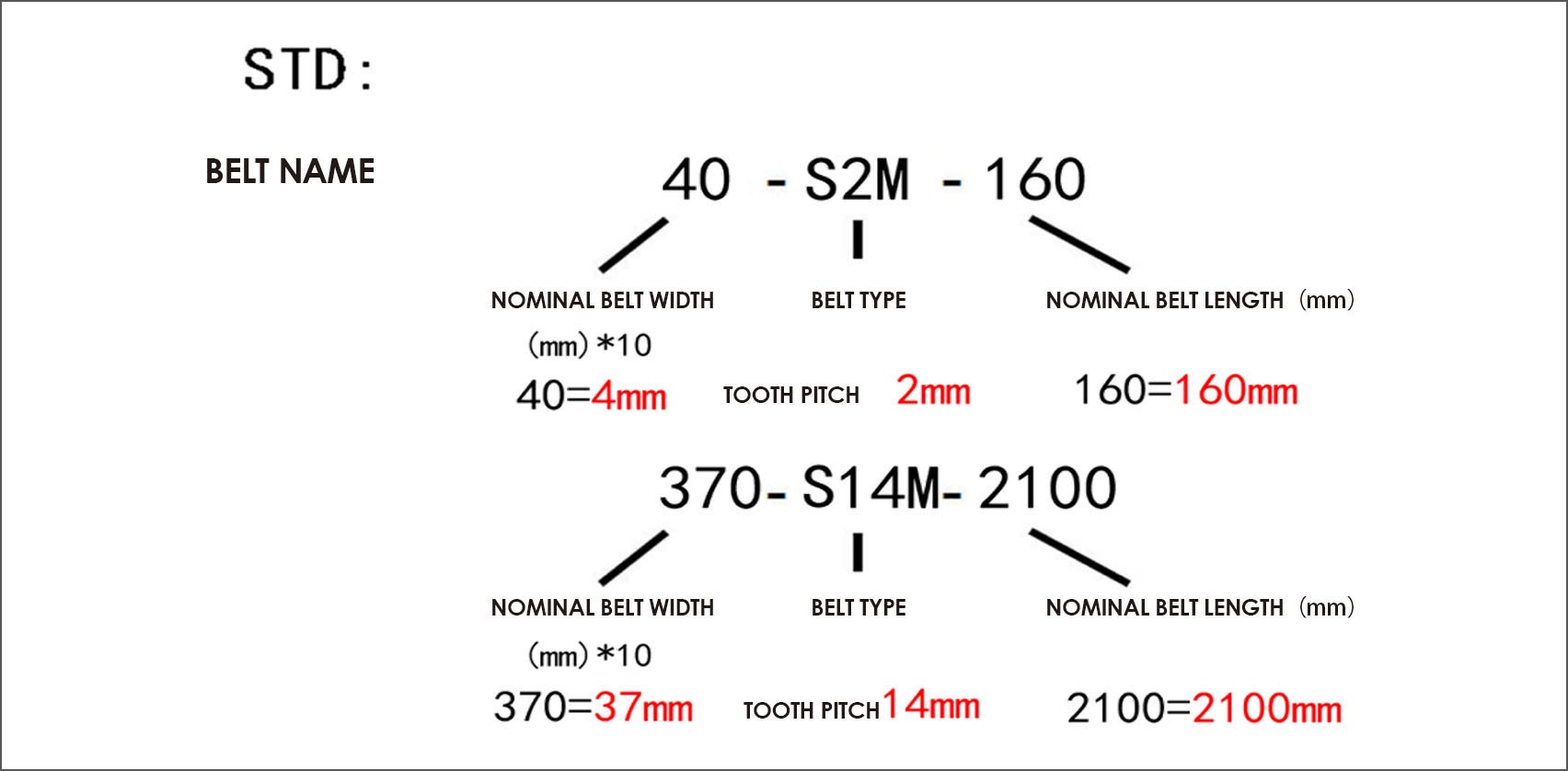

Naming Rules

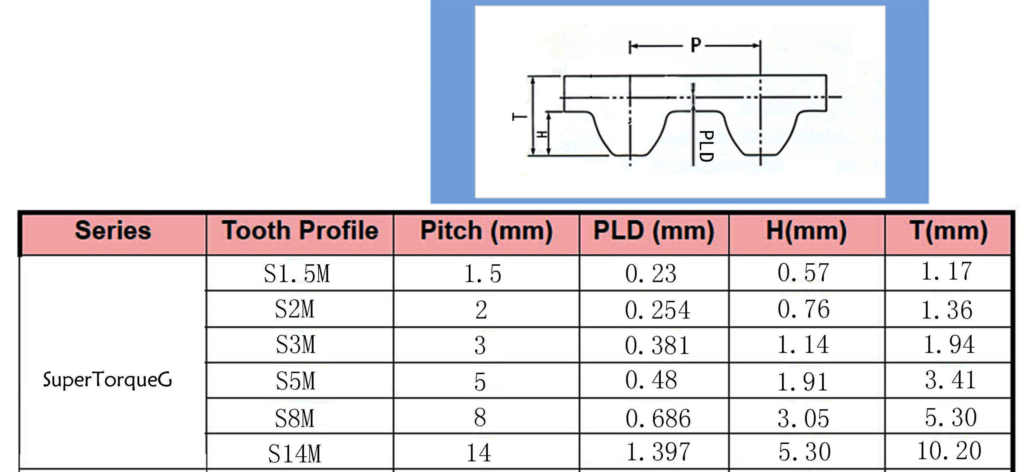

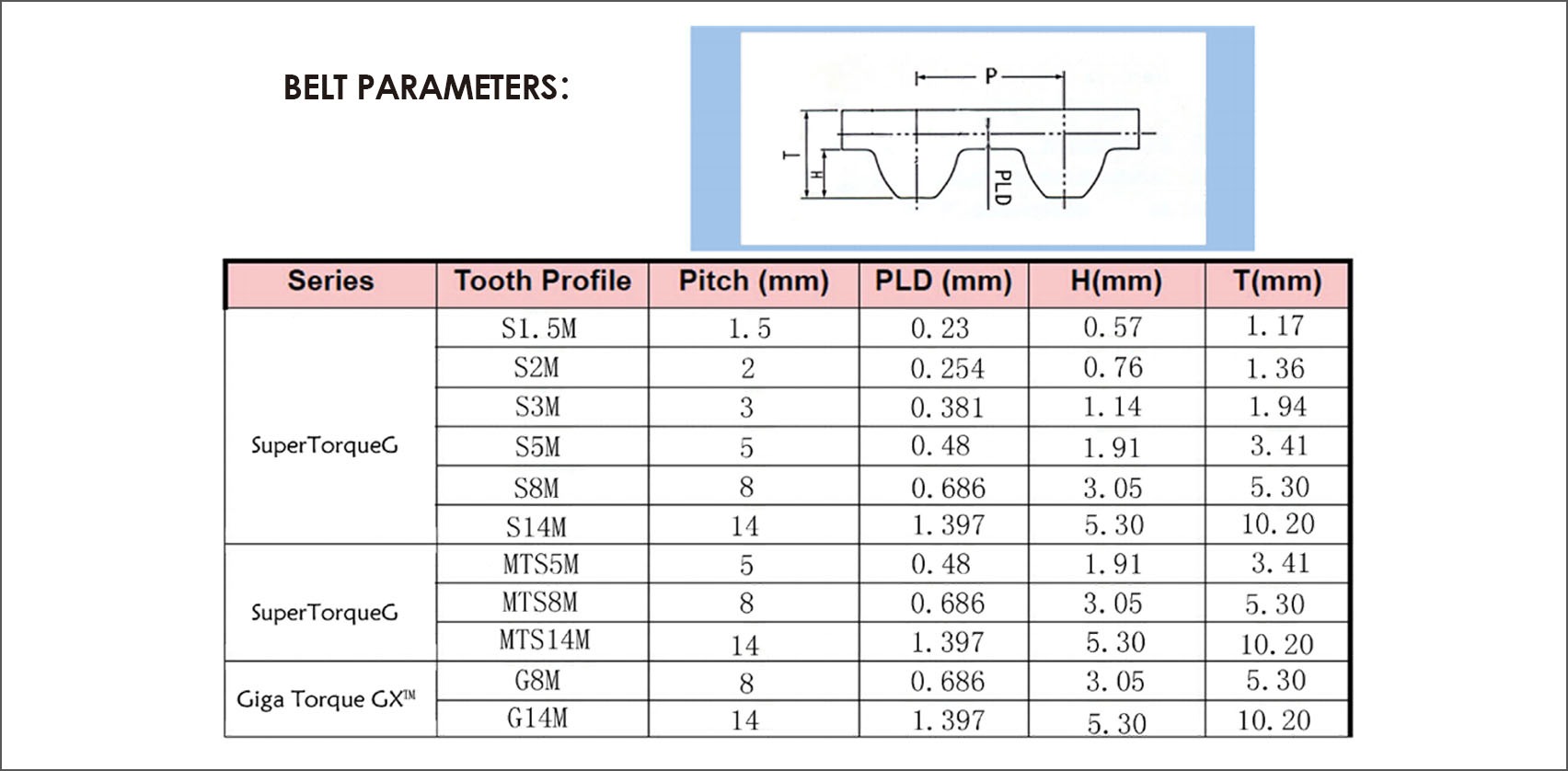

Tooth Profile
Trapezoidal Timing Belts Tooth Profile:S2M, S3M, S5M, S8M,S14M, DS3M, DS5M, DS8M, DS14M

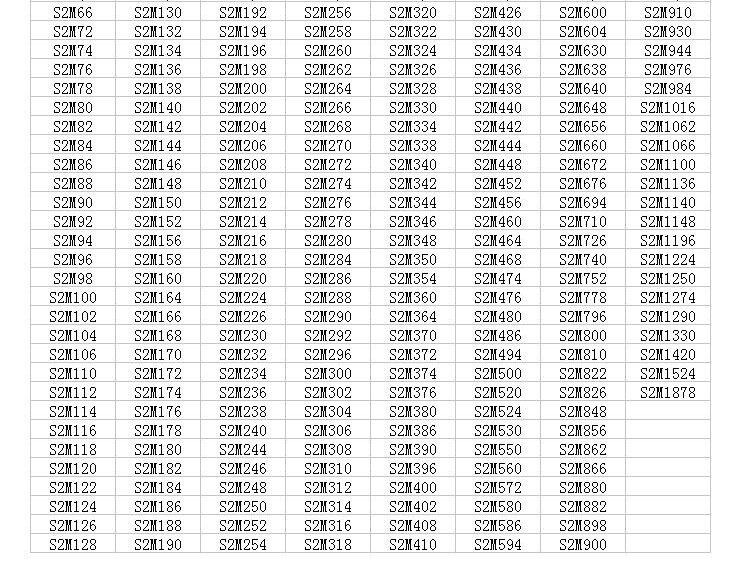

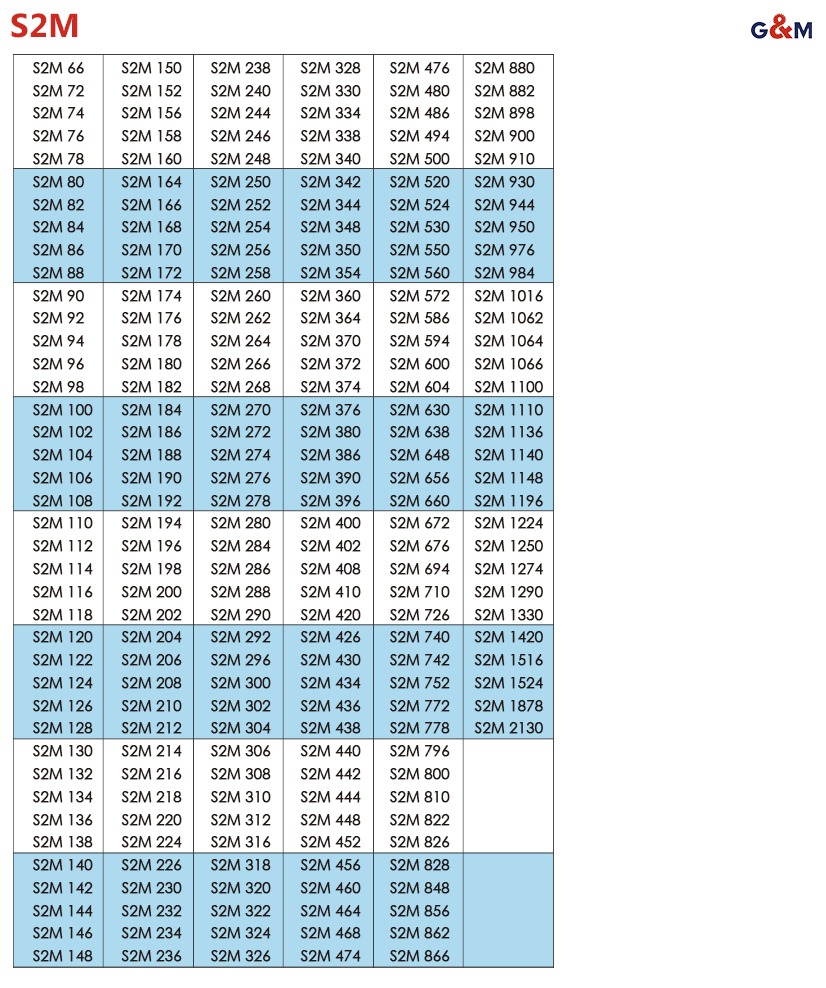

S2M
Model specifications

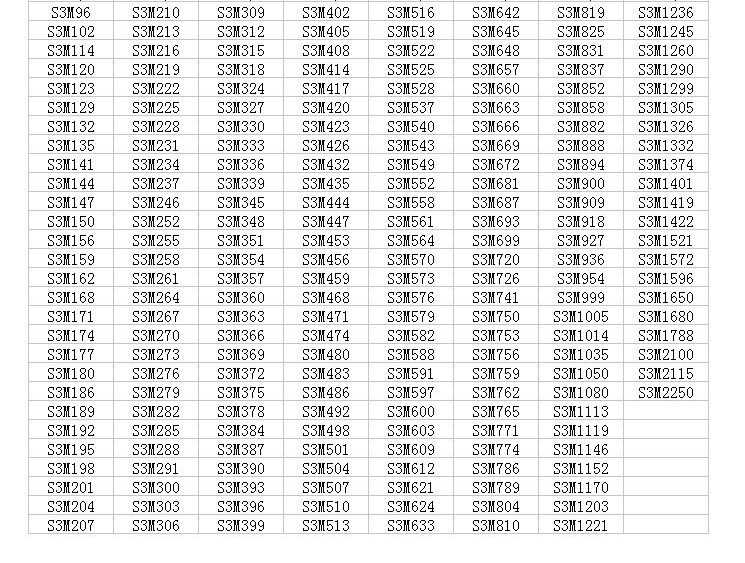

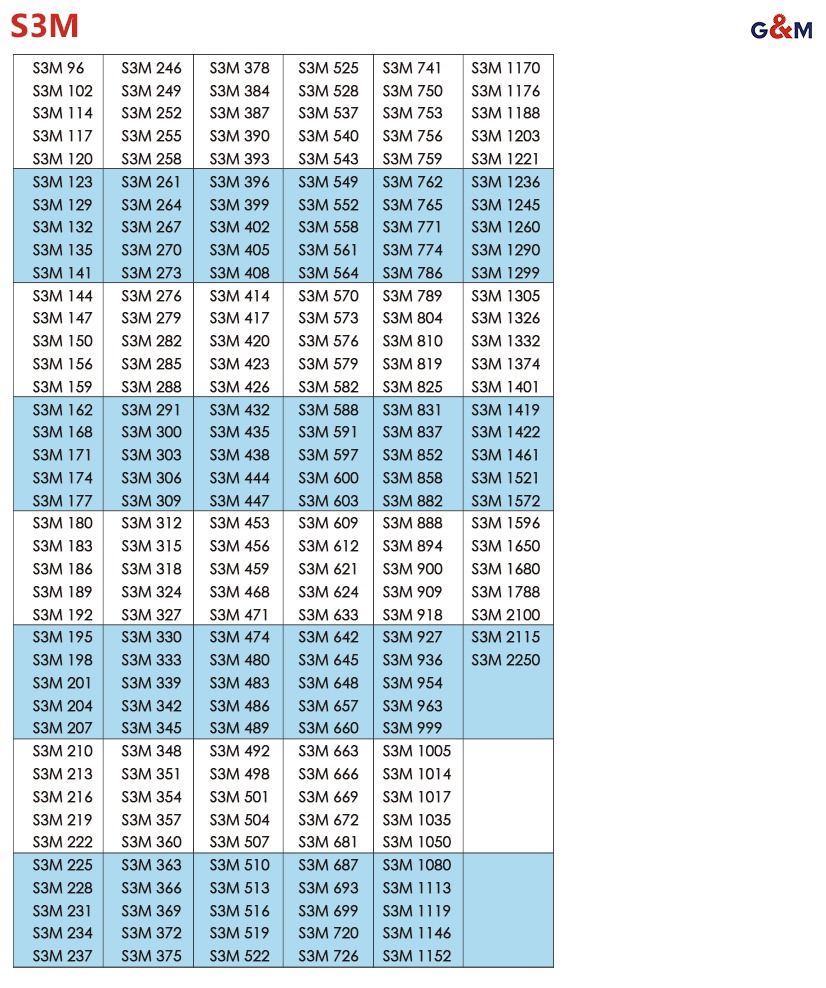

S3M
Model specifications

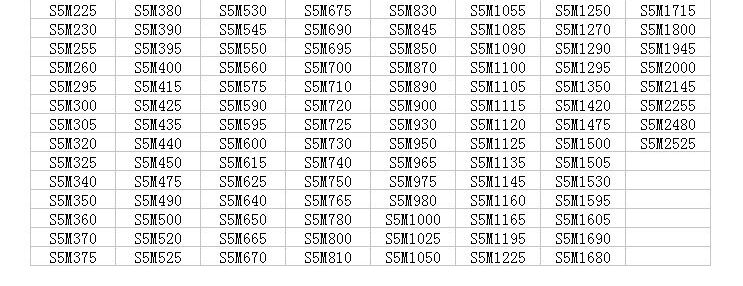

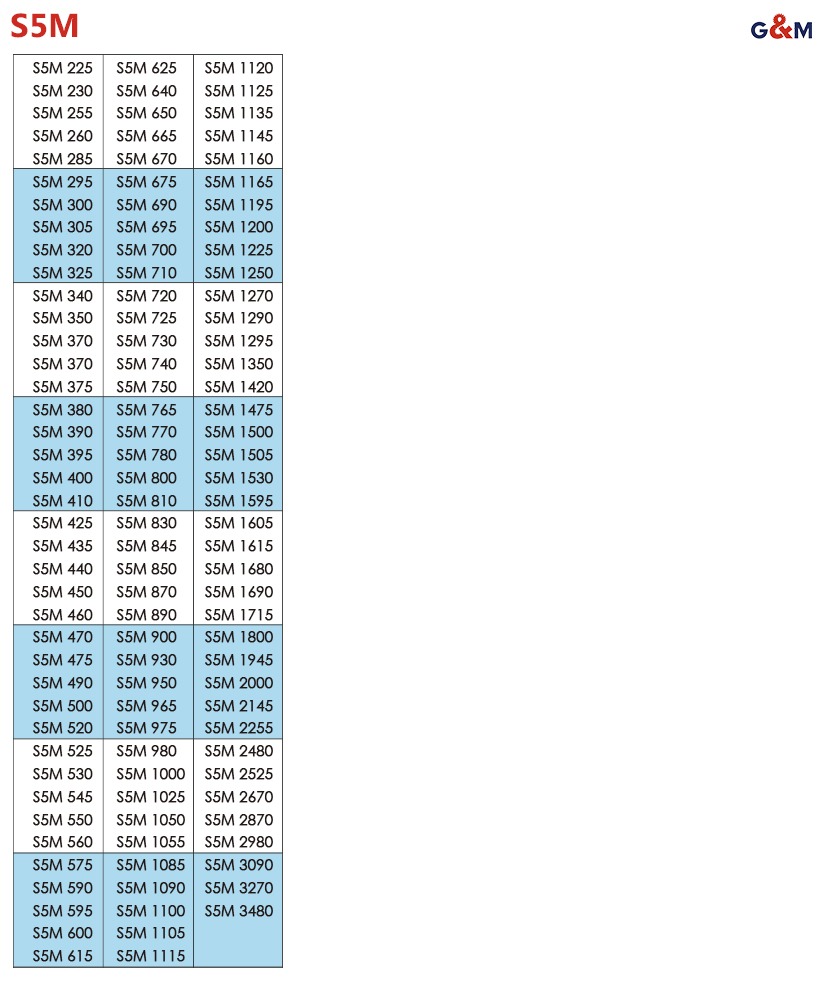

S5M
Model specifications

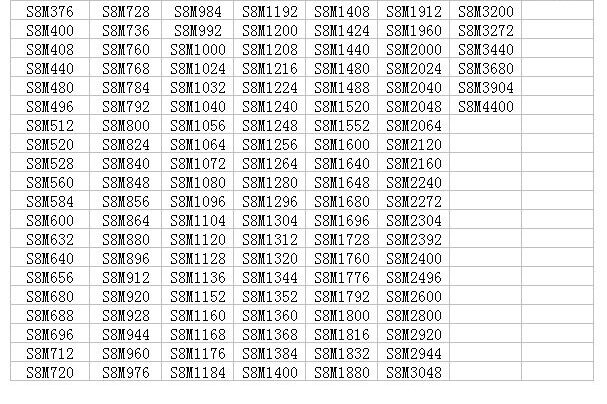

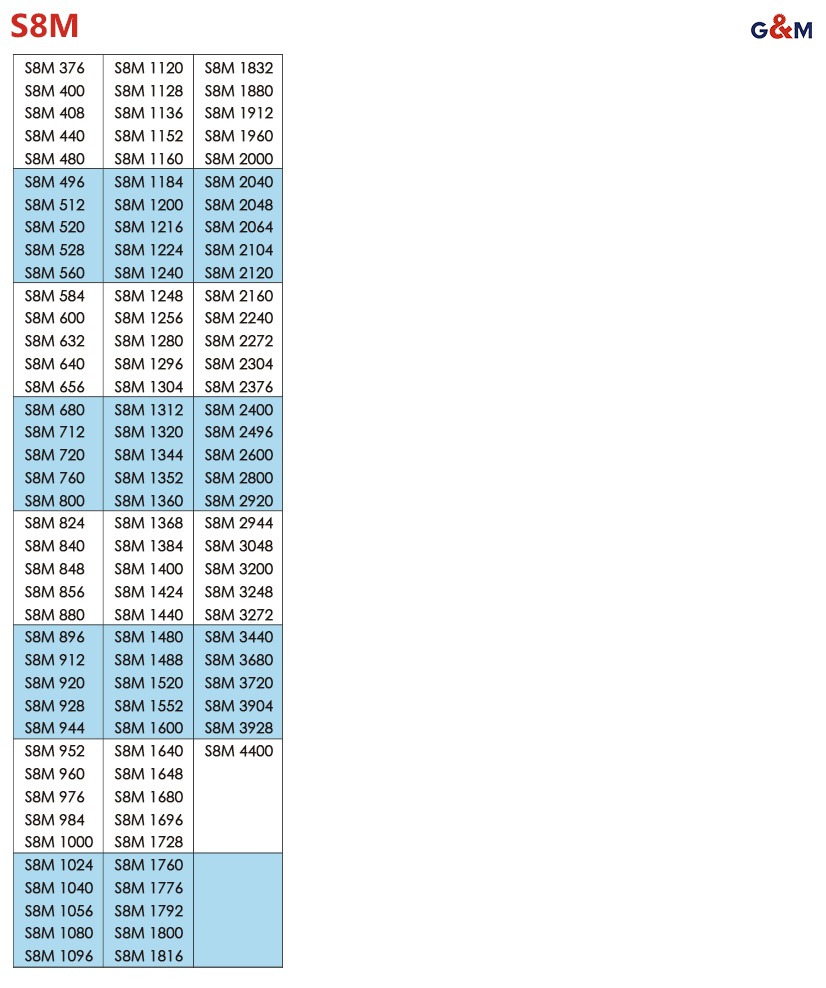

S8M
Model specifications

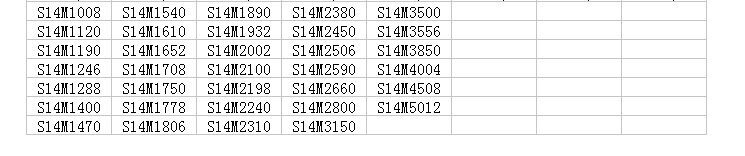

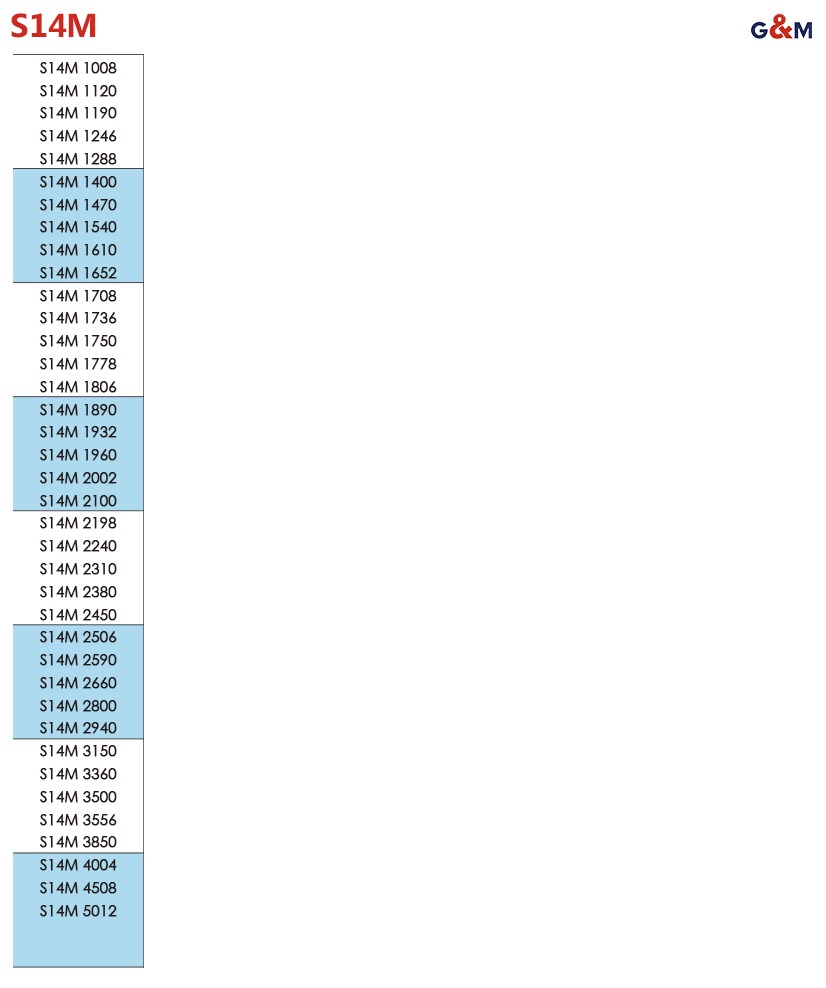

S14M
Model specifications

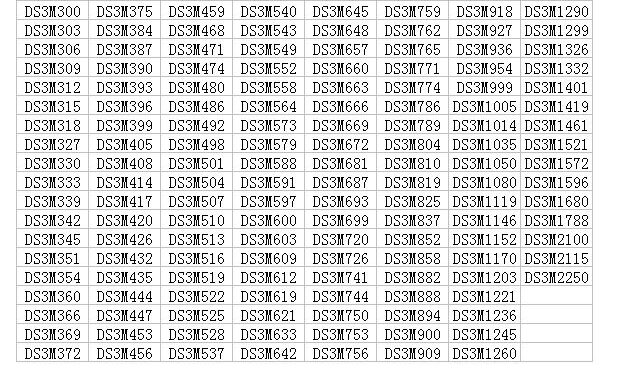

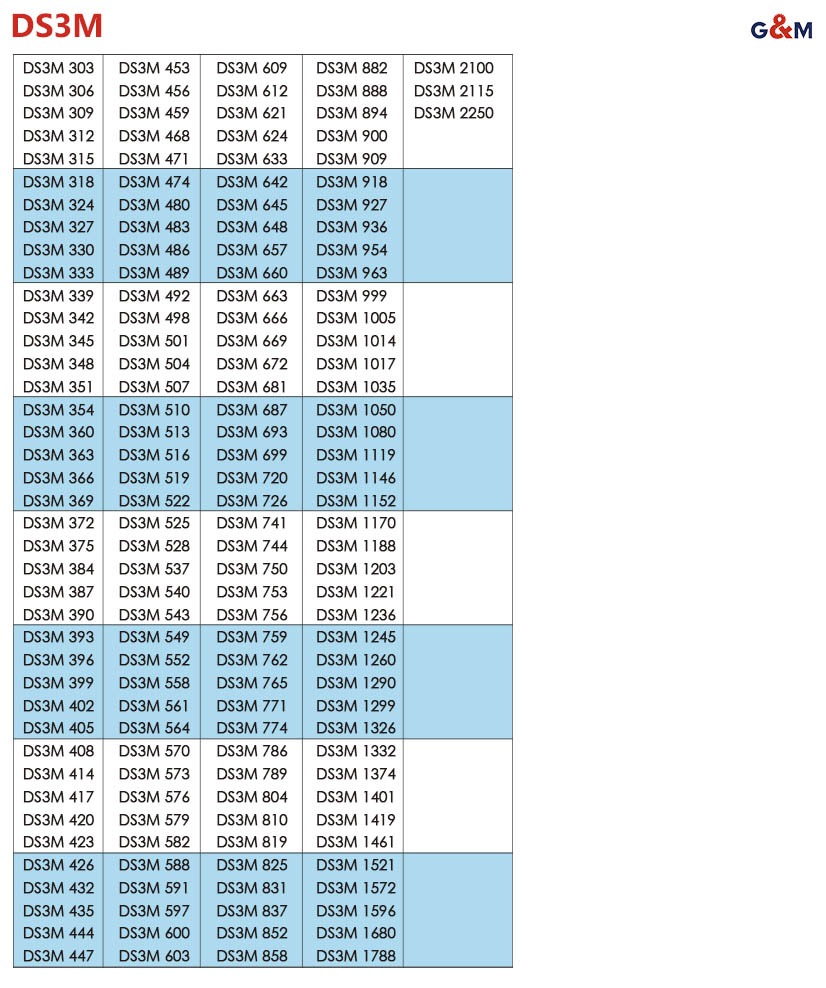

DS3M
Model specifications

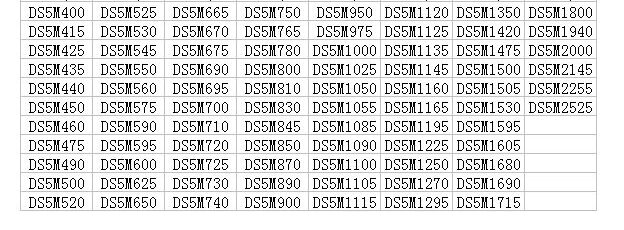

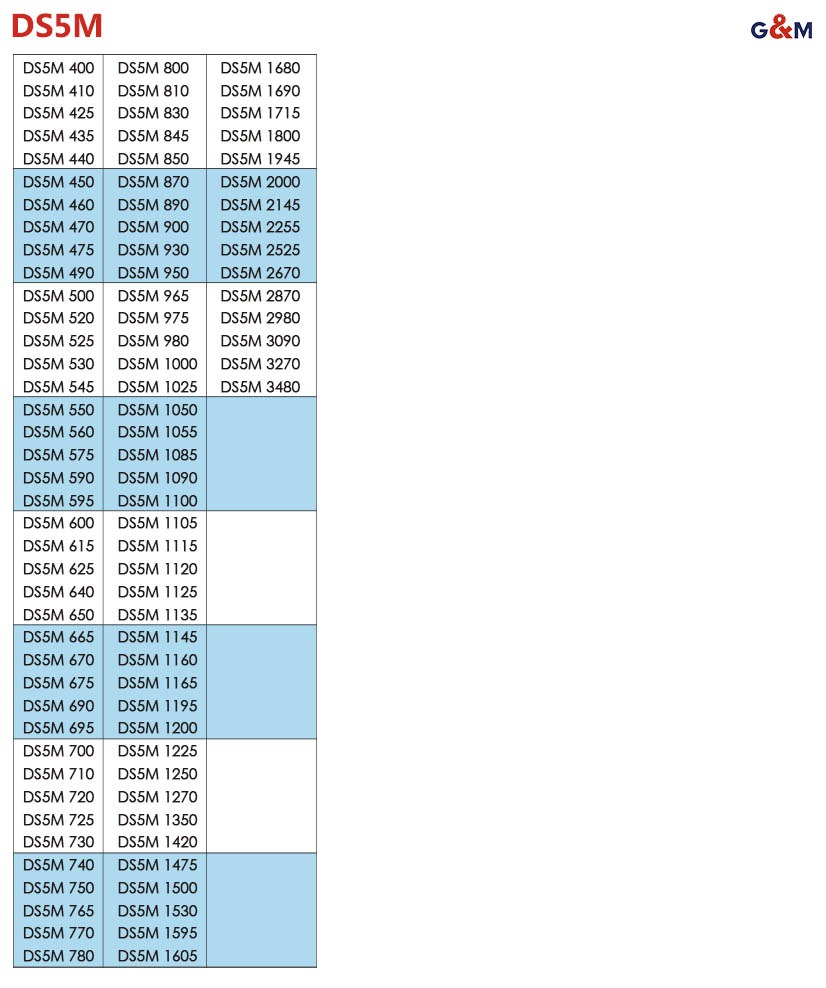

DS5M
Model specifications

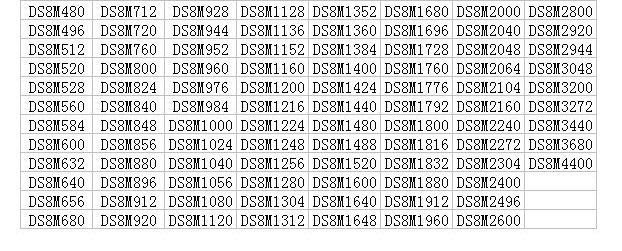

DS8M
Model specifications

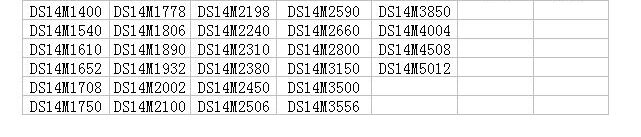

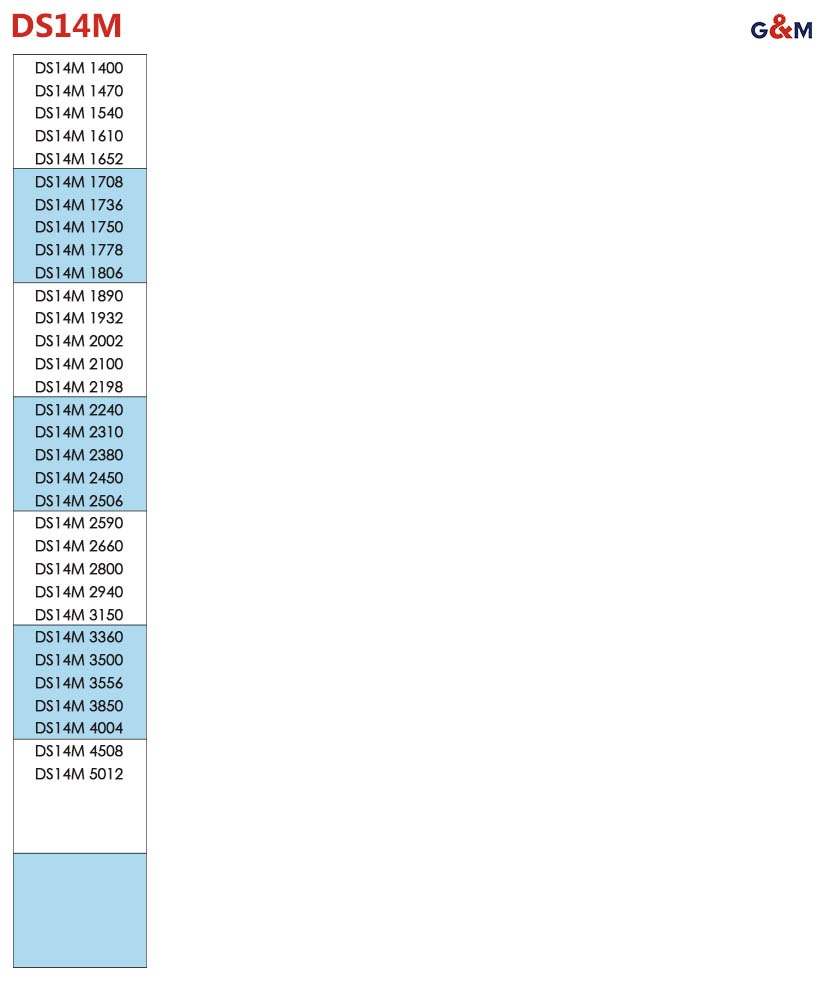

DS14M
Model specifications
Request more information.
